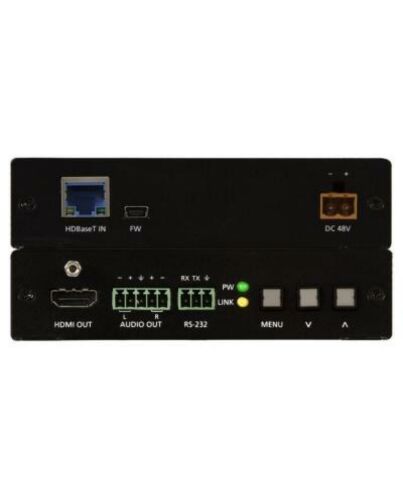

Atlona Technologies ATL-HDVS-150-RX

HDBaseT Scaler with HDMI and Analog Audio Outputs

The Atlona AT-HDVS-150-RX is an HDBaseT™ scaler receiver for HDMI transmission over category cable. It receives AV signals up to 1080p/60Hz or 19201200 video with embedded multi-channel audio and control signals at distances up to 230 feet (70 meters). Features include balanced analog audio de-embedding RS-232 control and Power over Ethernet for compatible transmitting devices. The receiver offers advanced scaling capabilities including image adjustment capability and an Auto-set feature for matching incoming signals to the display’s native resolution. Designed for use with the AT-HDVS-150-TX transmitter the transmitter/receiver pair enables auto display on/off auto-switching third-party control and other features. The built-in scaler works with matrix switchers to optimize source signals with different resolutions to a display’s native resolution. The AT-HDVS-RX is ideal for long distance transmission and display control in corporate or educational settings using analog and digital sources.

The HDVS-150 maintains all capabilities the HDVS series is known for and adds industry-standard Power over Ethernet for full HDBaseT certification. The HDVS-150 Series is a simple audio visual system with auto-switching for HDMI and VGA inputs projector on/off control analog audio de-embedding volume control and a scaler. Much more than an extender system it provides a complete system for small spaces like huddle rooms and teaching spaces with 2 or 3 sources.

Features

Long distance HDMI extension
