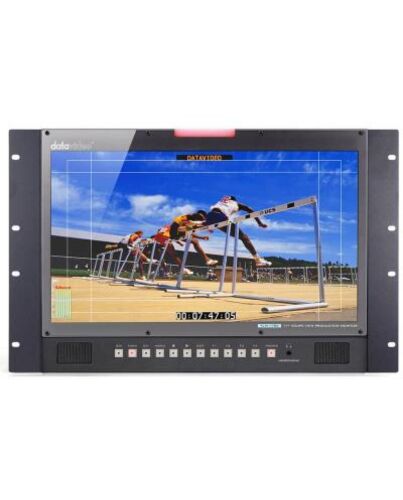

Datavideo TLM-170VR

7U RM 17 ScopeView Production Monitor

Key Features
• 7U Rack Mount 17 ScopeView Production Monitor
• Supports 3G/HD/SD 1920x1080 panel resolution
• 1 x 3G/HD/SD-SDI 2 x HDMI inputs; 1 x 3G/HD/SD-SDI 1 x HDMI loop through
• SDI HDMI cross conversion
• Various built-in functions: Support column (YRGB peak) time code waveform vector scope & audio level meter peaking zoom pix to pix underscan check field tally light

Specifications
• Screen: 17.3 LED Backlit
•Chassis: 7RU Rack Mount
•Resolution: 1920x1080
•Viewing Angle: (H) +89/-89 (V)+89/-89
•Luminance/Contrast: 300cd/m2 700:1
•Video Inputs: 1x 3G/HD/SD-SDI 2x HDMI
•Loop Through: 1x 3G/HD/SD-SDI 1x HDMI
•Supported Input Resolutions: 1080p(23.98/24/25/29.97/30/50/59.95/60Hz) 1080i(50/59.94/60Hz) 720p(50/59.94/60Hz) 576i(PAL) 480i(NTSC)
•Aspect Ratio: 16:9 4:3
•Tally LED: Live (Red) Cued (Green)
•Audio In/Out: 2x Speaker 1x Headphone Jack
•Special Features: SDI and HDMI cross conversion Support column (YRGB peak) time code waveform vector scope & audio level meter peaking focus assist zoom pix to pix underscan check field
• Power: DC 10-18V 32W
