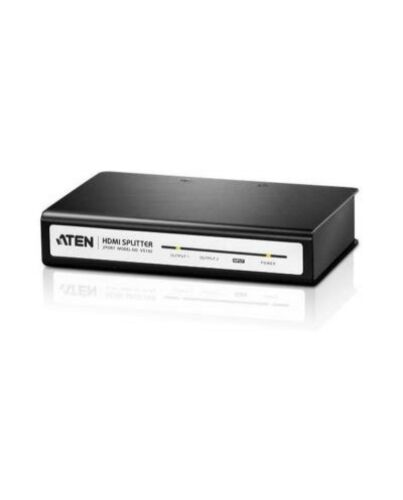

ATEN VS182B-AT-E

Aten VS182B-AT-E

Product Key Features
• Connects one HDMI source to two HDMI displays at the same time.
• HDMI (3D Deep Color 4K); HDCP 2.2 Compatible.
• Max pixel clock rate up to 600 MHz.
• Long distance transmission- up to 15 m(1920x1200)/ 1.8m (True 4K)*.
• Supports HDR10+.
• Supports max resolutions of up to 4096 x 2160 / 3840 x 2160 @ 60 Hz (4:4:4).
• Max data rate up to 18 Gbps (6 Gbps per lane).
• LED indication of power status and source devices.
• EDID Expert™ – Selects optimum EDID settings for smooth power-up high-quality display and use of the best video resolution via EDID DIP Switch allowing users to effortlessly switch among Port 1 Default and Auto.
• Plug-and-play – No software installation required.

Note: Compatible with ATEN 2L-7D02H.

Product Overview
The VS182B True 4K HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to two displays at the same time. It supports all HDMIenabled equipment such as DVD players satellite set- top boxes and all HDMI monitors displays projectors or TVs.

The VS182B True 4K HDMI Splitter is HDMI 2.0 compliant 4K at 60Hz (4:4:4) and supports multiple streaming audio making it effective for use with all HDMI displays in home theater applications as well as in corporate educational and commercial settings.

Product Package Contents
• 1 x VS182B 2-Port True 4K HDMI Splitter.
• 1 x Power adapter.
• 1 x HDMI cable.
• 1 x User Instructions.

Video Input
• Interfaces: 1 x HDMI Type A Female (Black).
• Impedance: 100 .
• Max. Distance: 1.8m / 4K@60Hz (4:4:4).

Video Output
• Interfaces: 2 x HDMI Type A Female (Black).
• Impedance: 100 .
• Max. Distance: 1.8m / 4K@60Hz (4:4:4) 15m / 1920 x 1200.

Video
• Max. Data Rate: 18 Gbps( 6 Gbps Per Lane).
• Max. Pixel Clock: 600 MHz.
• Compliance: HDMI (3D Deep Color 4K); HDCP Compatible.
• Max. Resolution: Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4).

Audio
• Input: 1 x HDMI Type A Female (Black).
• Output 2 x HDMI Type A Female (Black).

Connectors
• Power: 1 x DC Jack.

Power Consumption
• DC5V:4.24W:20BTU.

Environmental
• Operating Temperature:0-40 C.
• Storage Temperature:-20 - 60 C.
• Humidity:0 - 80% RH Non-Condensing.

Physical Properties
• Housing Metal.
• Weight 0.32 kg ( 0.7 lb ).
• Dimensions (L x W x H) 12.50 x 8.00 x 2.50 cm (4.92 x 3.15 x 0.98 in.).

Carton Lot
20 pcs

Note
For some of rack mount products please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
